AMES / MANUFACTURING CAPABILITY

Fasteners

Standard and custom fasteners and hardware.

Discuss your part

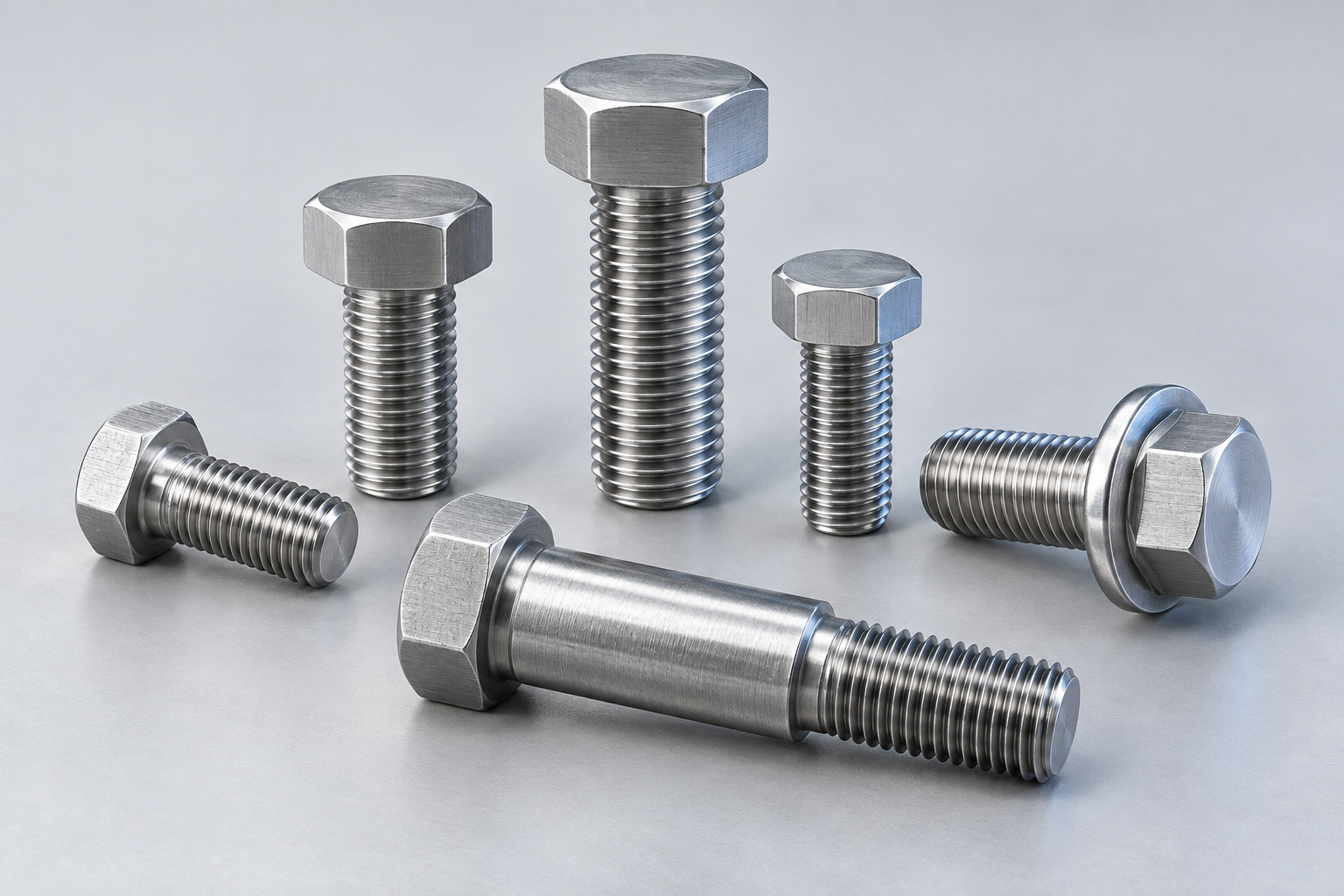

Representative group of steel fasteners with hex heads, flanges and visible threads.

Overview

We supply standard and custom fasteners and hardware, including bolts, screws, studs, nuts, washers, pins and related formed parts in metric and inch sizes, across a range of materials and grades. Options include socket-head, hex-head and 12-point designs, locking and anti-loosening solutions, and rolled, cut or specialty thread forms. Manufacturing routes may include cold heading, hot forging, thread rolling, machining, specified heat treatment and finishing. We supply certificates for orders ranging from small batches to mass production, with material and inspection documentation matched to purchase requirements.

Fastener solutions

Metric fasteners

Metric bolts, screws, studs and nuts with coarse or fine threads. Common specifications include DIN EN ISO 4762 socket-head cap screws and ISO 4014/4017 hexagon-head bolts and screws, with the required material and property class.

Inch fasteners

Inch-series fasteners with UNC or UNF threads and ASME dimensional requirements. Material and strength requirements can follow the specified ASTM or SAE standard, including ASTM A574 for inch-series alloy-steel socket-head cap screws.

Head styles

Socket-head cap screws, hex-head bolts and screws, and 12-point fasteners. Choose standard head forms or custom geometry to suit tool access, installation clearance and assembly requirements.

Custom & locking solutions

Drawing-based fasteners with custom dimensions, head designs, materials and surface finishes. We also provide locking and anti-loosening solutions selected for the joint, operating conditions and installation requirements.

Fastener supply options

Specify the material, strength grade, size, finish and thread to match your assembly.

Materials

Material options are selected for the joint, service environment and manufacturing route.

Carbon and alloy steel
1008, 1010, 1022 and 10B21.
Stainless steel
304 and 316 stainless steel.
Aluminum
2024 aluminum alloy.
Brass
C37700 forging brass for hot-forged or upset parts.

Strength grades

Select the applicable fastener standard and property designation for the material and product form.

Metric steel
ISO 898-1 property classes 8.8, 10.9 and 12.9, within the standard’s applicable size scope.
Inch steel
SAE J429 Grades 2, 5 and 8.
Stainless steel
ISO 3506-1 examples include A2-70, A2-80, A4-70 and A4-80.
Product fit
Material, grade and size combinations follow the applicable product specification.

Sizes

Standard and custom fastener sizes are available across metric and inch systems.

Metric
M4–M64.
Inch
¼″–1½″.
Selection
Available combinations depend on the fastener type, applicable standard, grade and production route.
Specify
Diameter, length, pitch, tolerance and head style as required by the drawing.

Coatings

Coatings are selected to match the specified fastener, corrosion requirements and assembly.

Zinc
Zinc plating and zinc-nickel plating.
Hot-dip galvanizing
Available for specified steel fasteners and hardware.
Zinc-flake
GEOMET coatings.
Zinc diffusion
Composite zinc diffusion coatings.

Thread options

Specify the thread-making method separately from the thread standard and series.

Manufacturing method
Threads can be rolled or cut, as specified for the fastener and application.
Metric
Coarse- or fine-pitch ISO metric threads.
Unified inch
UNC coarse and UNF fine threads.
Specialty
UNJC coarse and UNJF fine for specified UNJ-form threads; other specialty forms to drawing.
